Repo graph
Route: /repo

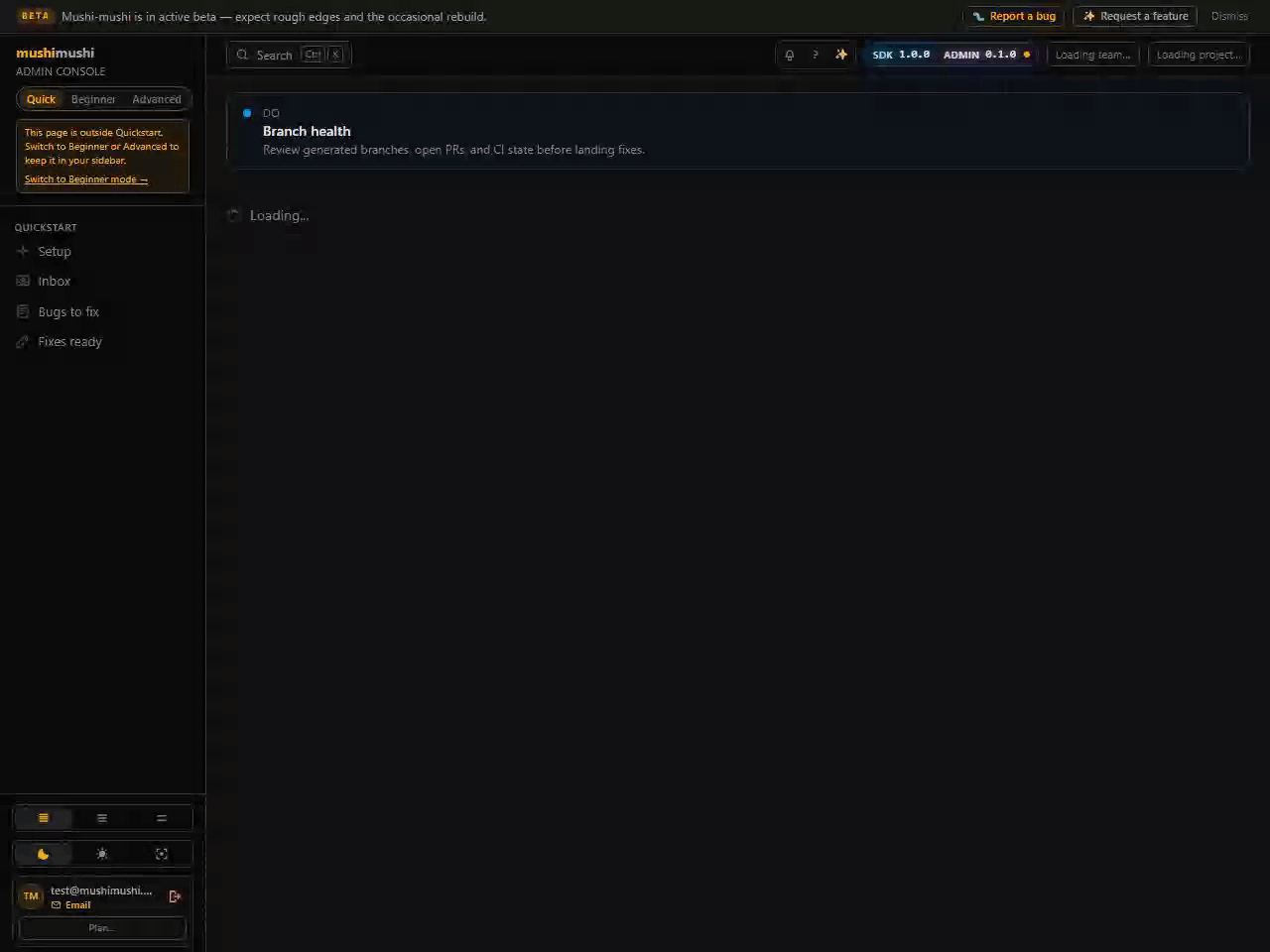

The Repo page shows the live state of every fix branch in your connected GitHub repository — which ones have open PRs, which are passing or failing CI, and what the fix-worker did on each. It’s the “Do” phase view: where code changes actually land.
Repo header
The header card shows:
- Repository URL — with an Open on GitHub ↗ link
- Default branch
- GitHub App installation status — whether the Mushi GitHub App has the necessary permissions
- Last indexed time
Count chips in the header summarise the branch states across the project: Total / PR open / CI passing / CI failing / Merged / Stuck
Branch list
Branches are shown as cards. Use the segmented filter to narrow by state:
| Filter | Shows |
|---|---|
| All | Every fix branch |
| PR open | Branches with an open pull request |
| CI passing | PRs with all CI checks green |
| CI failing | PRs with at least one failing CI check |
| Failed | Branches where the fix-worker failed |
Each branch card shows:
| Field | Description |
|---|---|
| CI badge | Passing / failing / pending |
| Branch name | mushi/fix-<slug> format |
| PR link | External link to the GitHub pull request |
| Report summary | Title and severity of the original report |
| Files changed / Lines changed | Diff size |
| Category | Bug category from the classifier |
| FixGitGraph | Mini timeline of fix-worker commits on this branch |
Repo activity log
The right panel shows a chronological log of all fix-worker events across the project:
| Event type | Description |
|---|---|
dispatched | Fix-worker run started for a report |
branch | Branch created |
commit | Commit pushed to the fix branch |
pr_opened | Pull request opened |
ci_resolved | CI checks completed |
completed | Fix-worker run succeeded |
failed | Fix-worker run failed |
Managing the GitHub connection
The Manage link in the header navigates to /integrations/config where you can
update the GitHub token, repository URL, and default branch.
API
GET /v1/admin/repo/overview?project_id=<pid>
GET /v1/admin/repo/activity?project_id=<pid>&limit=100Related pages
- Fix orchestrator — full fix-worker run detail and streamed logs
- Integrations — configure the GitHub App connection
- Reports & triage — the source of dispatched fixes
